Description

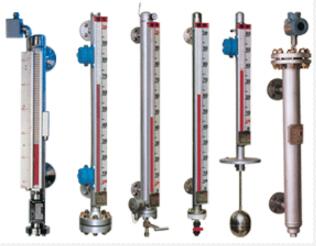

UHZ series float level meter, used for liquid level measurement, display and transmission. Max rang 20m, measuring accuracy 0.03%FS, UHZ series of float level gauge, is two-wiring instrument, offer five bit LCD display in fields, also offer 4～20mADC remote transmission signal
Range: 10m ,20m
Display: five digital play(LCD), unit: mm
display accuracy: ±0.03%FS±1 bytes
Analog output: 4～20mADC two-wiring
Transmission accuracy: ±0.5%FS
Load resistance: 0～430Ω
Power supply: UHZ-113 24VDC±10% current>30mA
Environment temperature: -25～＋60℃
Density of measured medium: >0.7g/cm3
Float size: 200×400×50(mm)
Float weight: 1550g
Material of measuring belt and guide structure: stainless steel 1Cr18Ni9Ti
Installation: sensor, flange mounted, flange diameter> Ø260
Display transmitter: wall-mounted or column-mounted
Work pressure: normal pressure 2.5Mpa
Explosion-proof sign: flameproof: d ⅡBT6 Intrinsic Safety：ia Ⅱ CT5
