Description

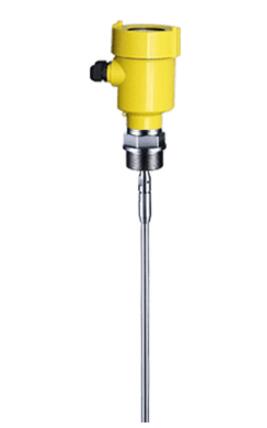

GDUL series Guided Wave Radar Level Meter, The guided wave radar level meter uses advance micro-processor and EchoDiscovery echo processing technology which make it can be used in the complex working condition. There are many connection methods which make it working in many conditions such as high-temperature media and high-pressure media. It is pulse working method and low transmits power. It can be install in all kinds of metal and non-metal container. It is no harmful for human and environment.
Maximum range： cable：35m/rob：6m
accuracy： ±10mm
process connection： G1½A/G2A/1½NPT
measure part material： Stainless steel 316L /PTFE
steel cable diameter： Φ6mm、Φ8mm/Φ10mm
Process temperature： -40…150 °C
Process pressure： -1.0…40bar
Signal output： two-wire 4…20mA/HART
