Description

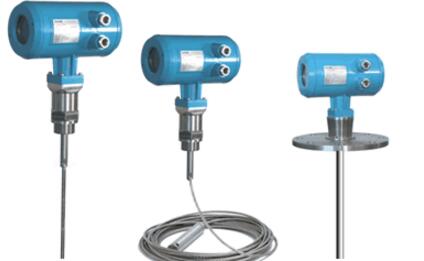

UL series guided wave radar level meter uses advance micro-processor and EchoDiscovery echo processing technology which make it can be used in the complex working condition. There are many connection methods which make ULS3X pulse radar level meter works in many conditions such as high-temperature media and high-pressure media. It is pulse working method and low transmits power. It can be install in all kinds of metal and non-metal container. It is no harmful for human and environment.
|
|
ULS31 |
ULS32 |
|
application |
Liquid and solid in complex condition |
Strong corrosive liquid |
|
Maximum range |
cable：30m/rob：6m |
6m |
|
accuracy |
±10mm |
±10mm |
|
Process connection |
GI 1/2A、G2A、1 1/2NPT |
PTFE flange |
|
Measure part material |
Stainless steel 316L/PTFE |
PTFE |
|
Steel cable/rob diameter |
Ф4mm、Ф6mm/Ф10mm |
Ф10mm |
|
Process temperature |
-40…+150℃ |
-40…+150℃ |
|
Process pressure |
-1.0…40bar- |
-1.0…16bar- |
|
Signal output |
Two-wire/four-wire4…20mA/HART |
Two-wire/four-wire 4…20mA/HART |
