Description
Product introduction:

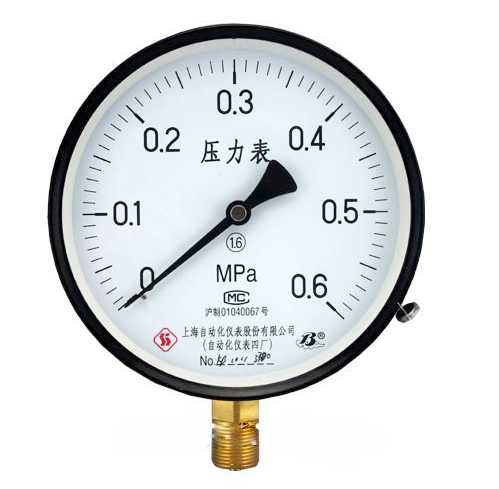

Model: Y-100
Name: general pressure gauge
Manufacturer: Shanghai Automation Instrumentation Co., Ltd.
Application: Y-100 general pressure gauge refers to the instrument with the spring tube as the elastic element, measuring and indicating higher pressure than the ambient. In the process of industrial process control and technology measure, due to the flexibility of mechanical pressure gauge sensor has high mechanical strength and production is convenient wait for a characteristic, make the mechanical pressure gauge is widely used. Pressure gauges, vacuum gauges and pressure vacuum gauges are generally referred to as general pressure gauges.
Model selection:
|
Model |
Y-40 |
Y-60 |
Y-100 |
Y-150 |
Y-200 |
|
DN mm |
￠40 |
￠60 |
￠100 |
￠150 |
￠200，￠250 |
|
Joint thread |
M10*1 |
M14*1.5 |
M20*1.5 |
||
|
Accuracy |
2.5 |
1.5 |
|||
|
Measuring range |
0~0.1; 0.16; 0.25; 0.4; 0.6; 1; 1.6; 2.5; 4; 6 |
0~0.6; 1; 1.6; |
|||
|
0~10; 16; 25 |
0~10; 16; 25; 40; 60 |
||||
|
-0.1~0 |
-0.1~0; -0.1~0.06; 0.15; 0.3; 0.5; 0.9; 1.5; 2.4 |
||||
Working environment condition: -40~70℃, relative humidity is not more than 85%
Temperature influence: not more than 0.4%/10℃(working temperature deviation is 20±5℃)
