Description

Product introduction:

Model: YD-100

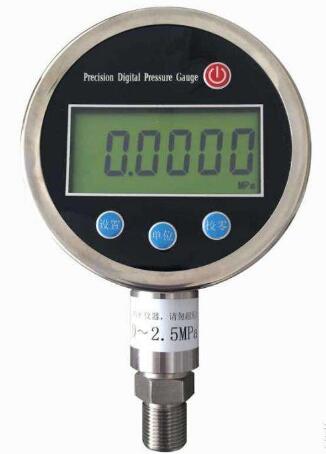

Name: digital pressure gauge

Manufacturer: Shanghai Automation Instrumentation Co., Ltd.

Application: Digital pressure gauge, also known as digital pressure gauge, built-in pressure sensor, is set pressure measurement, display one of the high-precision pressure gauge, with anti-vibration, high precision, high stability, can be cleared, automatic standby and so on. The series of digital pressure gauge using battery-powered, due to the use of low-power processor chip, long life, with automatic standby and a key clear function, easy to use, alternative mechanical pressure gauge for portable pressure measurement, equipment Matching, standard pressure calibration equipment and other fields.

Technical parameter:

- micro-power, high accuracy, high-definition digital LCD display;

- small size, easy to operate, easy to field calibration and precision pressure measurement use;

- intelligent calibration, linear repair, two seconds magnetic pen sensor zero;

- liquid crystal display with dynamic pressure value display function, visual display pressure percentage;

- can display online pressure measurement dynamic change curve, peak recording function (optional);

- various additional features. Such as RS486 interface output, 4-20mA output, 0 ~ 5V output, data instant messaging output USB interface, storage function (optional);

- Power supply: built-in a fifth lithium battery can be used for 5 to 7 years; or rechargeable lithium battery (including charger); or AC 220V power supply
